Distribution Boxes


Distribution Boxes

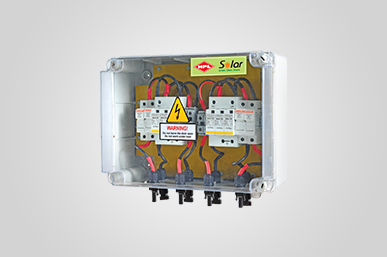

  • Ebrit A3 View Detail DC Distribution box
      • The DC distribution unit is used to collect the DC output from Array Junction Box (AJB) and supply it to the inverter.
      • In each section of our DC Distribution Box there is MCB/MCCB and a fuse of proper rating depending upon the capacity of the power plant and the battery bank are used
      • All of HPL- DC Distribution boxes is tested/certified as per IEC/IS standard.

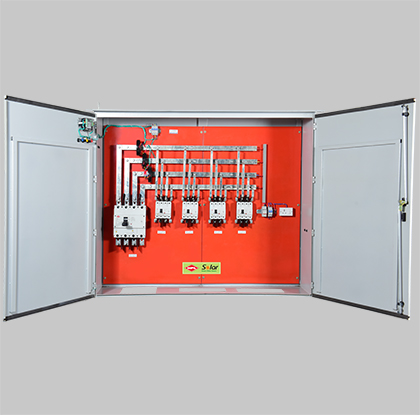

  • Ebrit A3 View Detail AC Distribution box
      • The ACDB receives AC power from solar inverter and directs it to AC loads.
      • A provision can also be made in ACDB to monitor the consumption of power from SPV Power Plant.
      • Our ACDBs are designed to deliver high performance and added protection by isolating inverter from mains as and when required.

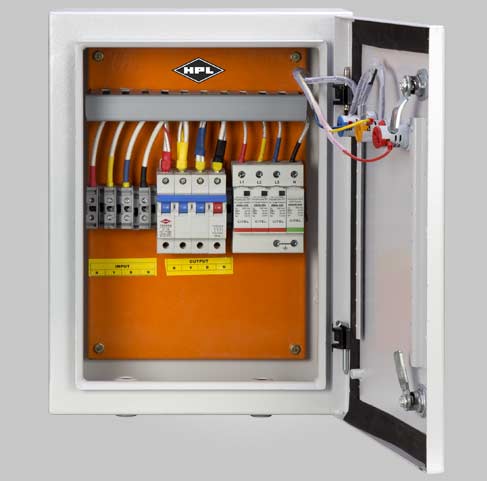

  • Ebrit A3 View Detail AC Distribution Box 800V DC
      • AC Distribution Boxes are tested and certified as per IEC/IS standard up-to operating voltage of 1000V AC
      • Degree of protection IP-65/66
      • Tailor made product as per customer requirements.
      • AC Distribution Boxes CRCA Enclosure are crafted with in house powder coating and phosphating facility In house testing facility:-
        • Current Test
        • High Voltage Test
        • Torque Test
        • Temperature Rise Test
        • Insulation resistance Test
        • Ingress Protection Test
