MCB's

Switchgear

MCB's

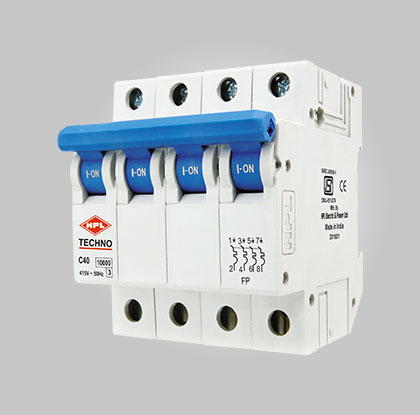

  • Ebrit A3 View Detail Techno MCB
      • Range : 0.5 to 63 Amps 240/415V, AC
      • Available in SP, SPN, DP, TP, TPN & FP
      • Breaking capacity 10kA
      • Available in B, C & D Curve
  • Ebrit A3 View Detail Osafe MCB
      • Range : 0.5Amp - 63Amp in SP, SPN, DP, TP, TPN, FP
      • Specification : IS/IEC-60898-1
      • Rated Voltage : 240/415V AC, 50Hz
      • Rated Breaking capacity 10kA & Energy Limit Class 3

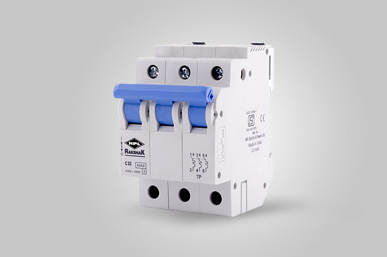

  • Ebrit A3 View Detail Rakshak MCB
      • Range: 6 to 63A.
      • Available in SP, SPN, DP, TP, TPN & FP.
      • ISI marked & conforms to IS:60898-1.
      • Protection against Short Circuit & Over Load.
      • Finger Touch proof (IP20).
      • Available B & C curve.
      • Breaking Capacity : 6kA.
      • Voltage Rating : 240/415V.
      • Low watts loss hence energy saving.
      • Low let through energy.

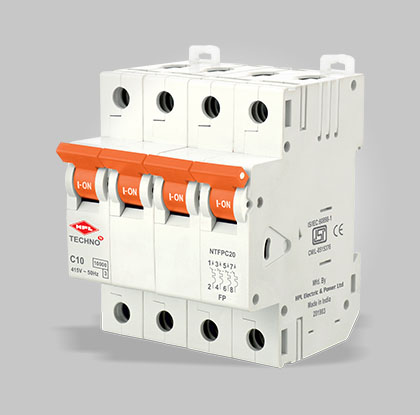

  • Ebrit A3 View Detail Techno N MCB
      • State-Of-The-Art design
      • Conforms to Is:60898 -1.
      • Rated short circuit breaking capacity 10 kA.
      • Current Limiting Design.
      • Trip-free Mechanism.
      • Cable termination up to 35 mm2.
      • IP 20 Protection on live parts.
      • Better arc quenching & cooling systems which ensure enhanced short circuit performance.
      • Energy Efficiency:Low watt loss in comparison to IS specification.
