Smart Metering Solution

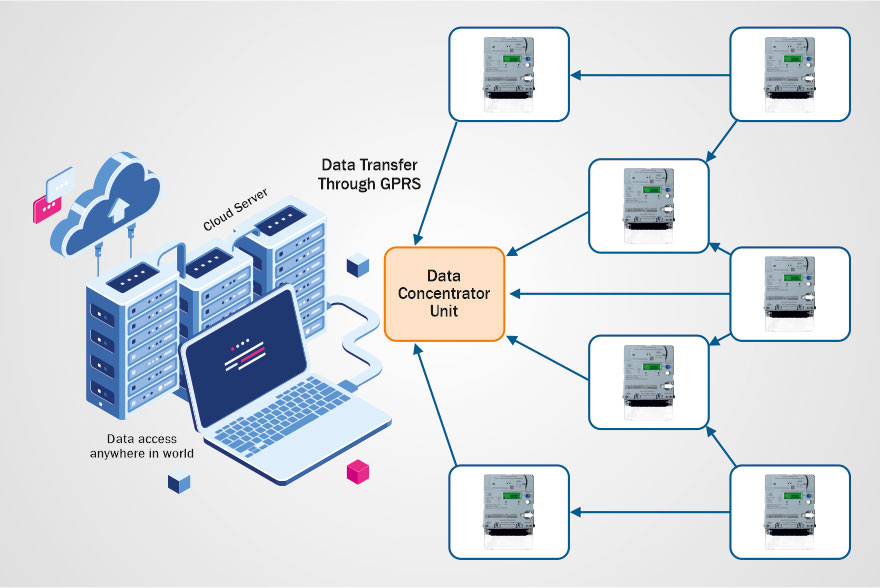

RF Based Solution

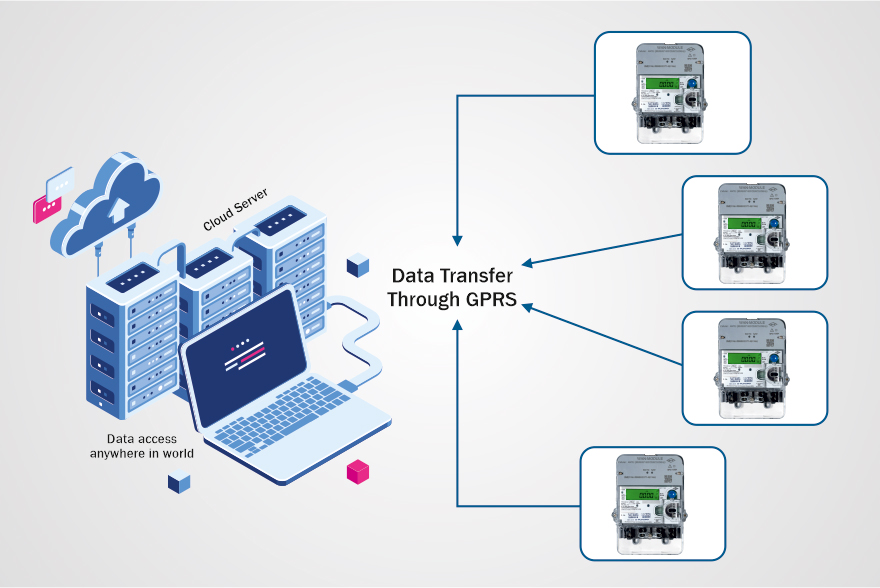

GPRS Based Solution

Salient Features

  • Available in class 1 accuracy as per IS: 16444:2015 Part 1 & Class 0.5s as per IS16444:2015 Part 2.
  • Meter rating available in Single Phase 5-30A/10-60A, 3Ph 10-60A/10-100A/20-100A, -/5A LTCT operated & -/5A HTCT operated variants.
  • MTCTE Certified.
  • Internal latching relays for Demand & Load Control.
  • Ideal for Remote Data Monitoring & Control, AMI/Smart grid.
  • Suitable for Net Metering.
  • Two way communication between Meters & Server for cellular communication and DCU & Server for LPRF communication.
  • Time of Day feature to monitor energy consumed in various time of day for efficient load management.
  • Tamper event detection, recording and reporting.
  • Power event alarm such as Power Outage, Low & High voltage.
  • Over the air configuration of programming parameters like TOD, Billing date & time, Integration Period configuration etc. as per IS 15959.

Benefits Utility:

  1. Loss Reduction.
  2. Stopping “Estimated Bills” & “Billing Disputes
  3. Improving billing efficiency
  4. Load forecasting.
  5. Remote configuration & monitoring of Meters

Benefits Consumers:

  1. Customer can access their consumption through Mobile App
  2. Charges based on actual usage, eliminating estimation
  3. By monitoring usage patterns, consumers can shift energy consumption to off-peak hours when rates are lower.
