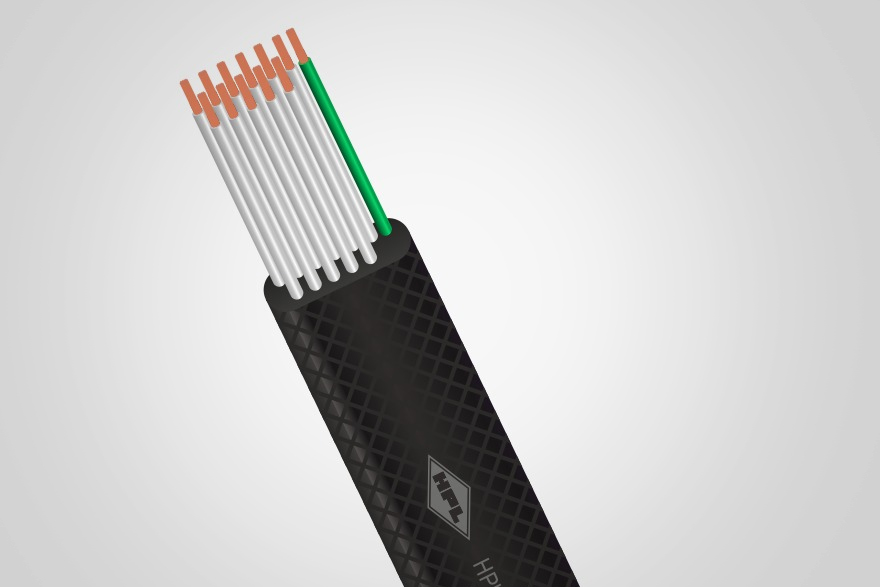

Flat Elevator Cable/ Lift Cable
HPL Flat Elevator cables is a harmonized, flexible, 450/750 volt, PVC flat festoon control cable. Mainly used as a trailing cable for crane installations, floor conveyor systems, elevator control cables, shelf control units and in supply lines for moving machine parts. The flat construction allows cables to be stacked for applications where space is at a minimum and require smaller bending radius over that of round cables. Suitable for installations in dry and damp rooms. The outer PVC jacket is extensively resistant to oil, fat, acid and lye. standards and only available in 20AWG (0.50mm2), 18 AWG (0.75mm2) and 17 AWG (1.0mm2)15 AWG (1.5mm2) sizes.
Technical
- Working Voltage: 300/500 V (H05)
- Working Voltage: 450/750 V (H07)
- Test Voltage: 3000 volts
- Flexing Bending Radius: 10 x O
- Flexing Temp: – 50C to +700C
- Static Temp: – 300C to +700C
- Flame Retardant: IEC 60332.1
- Insulation Resistance: > 36.7 Mo km
