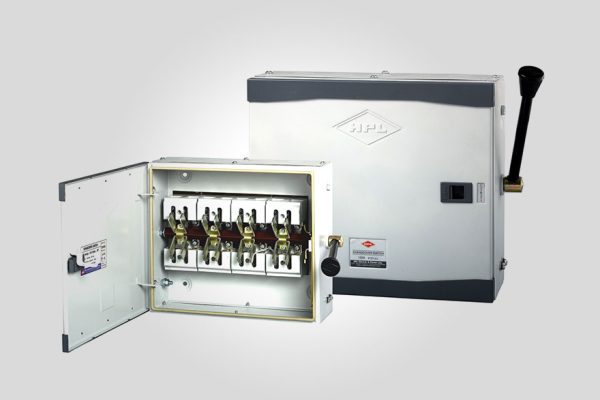

Offload Changeover Switch
Range:
Side handle Offload changeover switch-AC 22.
- 32A&63A/240Vac in Double Pole Version.
- 16A to 2000A/415Vac in Four Pole Version.
Specification:
- Conforms to IS/IEC: 60947-3.
Features:
- Suitable for individual mounting (Inner mounting holes & mounting brackets are provided as part of sheet steel enclosures).
- Steel Sheet enclosure is duly powder coated for longer durable life.
- Provision for door interlocking, which ensures that the door cannot be open when the switch is in’ON’position, thereby providing safety to human being.
- Terminations suitable for Aluminum Cables also.
- Provision of arcing contacts in current ratings 200 Amps & above.
- Fixed contacts are mounted on terminal blocks used for cable terminations. These terminal blocks are made of DMC which has superior mechanical & electrical properties.
- Any poles suitable for Neutral Selections.
