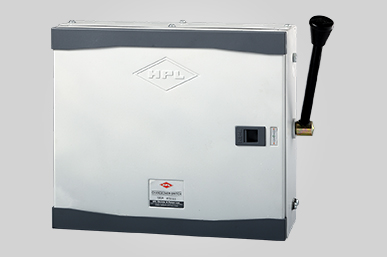

Double Break Changeover Switch with side handle
Salient Features:
- Range 32A – 63A 2P 240Vac for On Load switching.
- For On Load three phase source changing over Range 32A, 63A & 100A 4P 415Vac.
- Off Load Changeover operations Range 200A – 2000A 4P 415 Vac.
- Conforming to IS 13947 part 3/93.
- Ideally suited for Individual installation in power distribution in Residential / Commercial building and Industrial Installations
- Strong Operating Handle to drive the Quick make-break mechanism.
- Silver plated terminals suitable for Copper/ Aluminum Cable/ Bus Bar termination.
- Terminal Cover Shroud to prevent any accidental contact with live parts.
- Switches are provided with Door Interlock.
- Electrical contacts are made of Electrolytic Grade Copper, Silver Plated.
- Ample Cabling space provided in detachable gland plates.
- The enclosures are surface mounted, made of thick gage CRCA sheets, Rust protected, Phosphatised with 7 tank cleaning systems and powder coated for long life.


Application:
- Healthcare
- InternetDataCenters
- CommercialBuildings
- Industrialbuildings
- TelecomCentralOffice
- ProcessManufacturing
- DistributionPower/Loadmanagement
- HVAC
- Telecommunication
- BMS
- AMF
- UPS
- Servo
