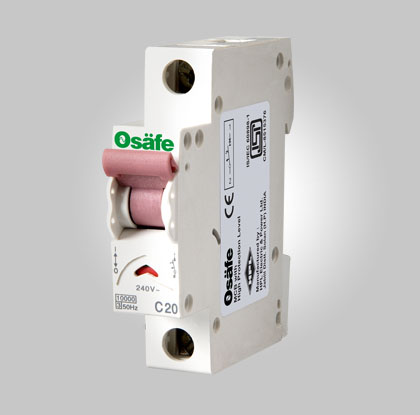

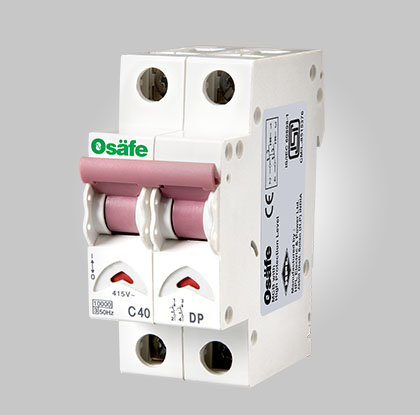

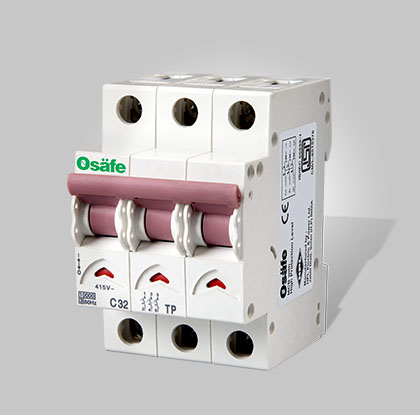

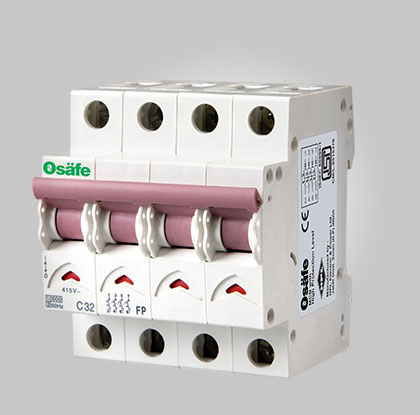

Osafe MCB

Salient Features

Range : 0.5Amp - 63Amp in SP, SPN, DP, TP, TPN, FP
Specification : IS/IEC-60898-1
Rated Voltage : 240/415V AC, 50Hz
Rated Breaking capacity 10kA & Energy Limit Class 3
Installation and removal of MCB without removing Busbar, as 3 position mounting clip makes it possible
Bi-connect termination on both sides & snap fitting on accessories
Padlock/Sealing facility : Contact position indicator red/green
Cable termination capacity of wire upto 35sq.mm.
Can be sealed with leads in the ON or OFF position
High Selectivity between MCB and back-up device due to low let-through energy.
Meets the requirements of insulation co-ordination, distance between contacts>4mm, for secure isolation
Tested at 16kA Icu as per IEC 60947-2, SPC 16A.

Application

House
Factory
Equipment?s
Machines
Invertors
Complex
Buildings
Offices

Catalogue

Application

Electrical Panels - Industrial HT & LT Panels.
Motor Control Centres, Distribution Contol & Relay panels.
Air Conditioning and Refrigeration Panels.
Genset Panels.
Generation, Transmission and Distribution panels.
Test Benches and Laboratory Equipment.
Uninterrupted Power Supply.Special OEM Application.

Catalogue
