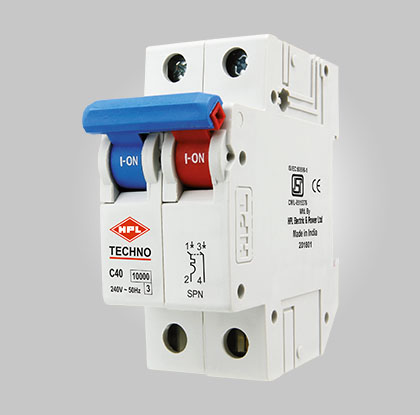

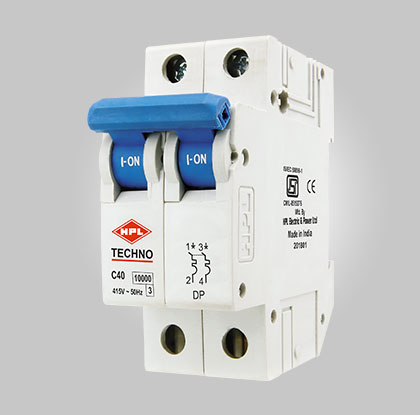

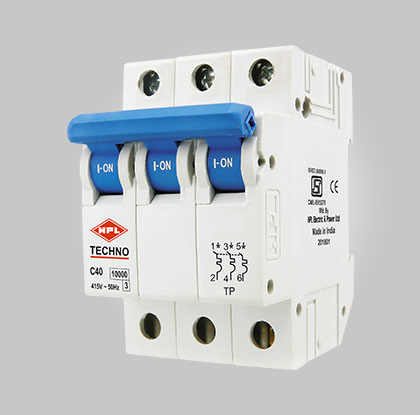

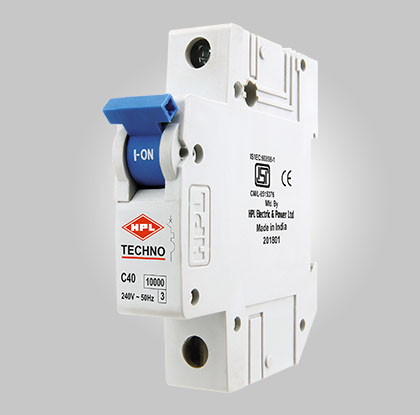

Techno MCB
Salient Features
  • Range : 0.5 to 63 Amps 240/415V, AC
  • Available in SP, SPN, DP, TP, TPN & FP
  • Breaking capacity 10kA
  • Available in B, C & D Curve
  • Insulation voltage : 660V, frequency : 50/60Hz
  • Finger Touch proof (IP20)
  • Mid Trip Technology
  • Protection against Short Circuit & Over Load
  • Low let through energy & low watt loss
  • Energy limit class 3
  • Trip free mechanism
  • Accessories :UV, Shunt trip, Auxiliary contact
  • DC MCB available in SP & DP from 0.5A to 63A
  • DC MCB voltage : 12V to 220V
Application
  • House
  • Factory
  • Equipment?s
  • Machines
  • Invertors
  • Complex
  • Buildings
  • Offices
