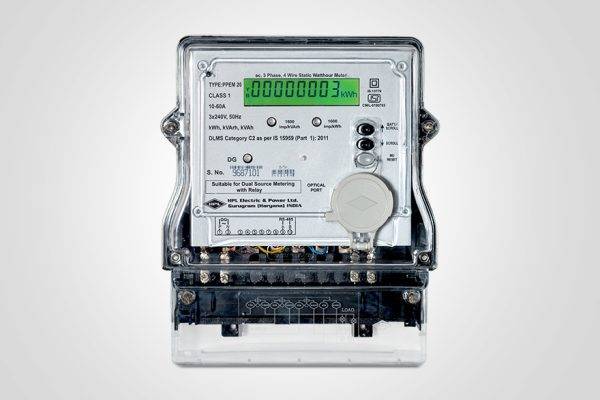

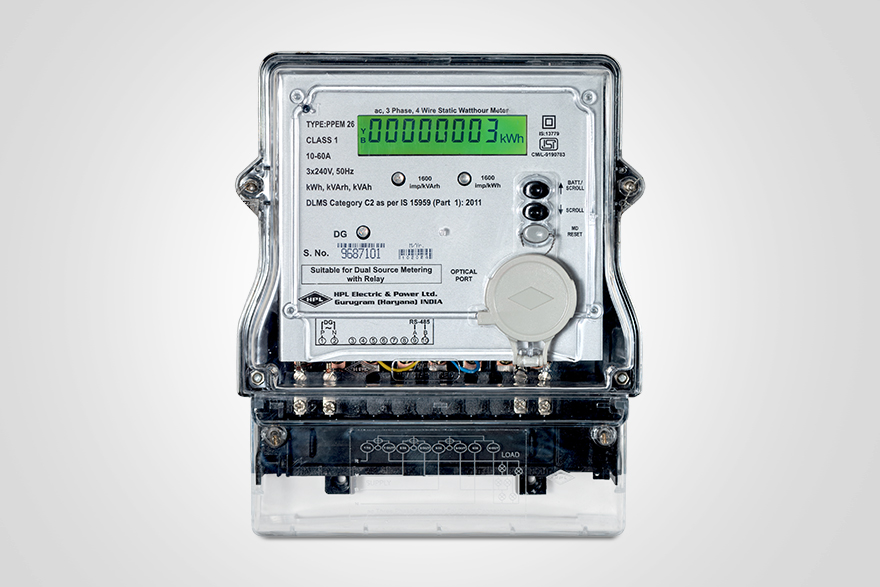

Smart Prepaid Metering Solution with RS-485 Communication

Smart Prepaid Metering Solution with RS-485 Communication

Features

  • Accuracy complies as per requirement of IS13779 for class 1.0 meter and IS14697 for class 0.5 meter
  • One-meter records Energy of two sources (Mains/DG)
  • Communication protocol- DLMS over optical port & MODBUS over RS 485 port for BMS/prepaid application
  • Mains / Generator selection through 240V signal
  • Indication for current reversal tampering and phase availability on the LCD itself
  • Meter can be configured for mains & DG load limit separately
  • Load survey & Tamper logging available
  • Rating available: 10-60A, -/5A
  • Internal latching relay for connection/Disconnection

pdf

icon-2
icon-1

Application:
  1. Automatic Meter Reading (AMR) Application
  2. Residential Application
  3. Pay As You Go (PAYG) Application.
  4. GPRS Based Solution.
  5. Fit for dual source applications
Benefits:
  1. Customer can access their consumption through Mobile App
  2. Charges based on actual usage, eliminating estimation
  3. Record energy of two sources (Mains/DG)
  4. End consumer can recharge their meter through mobile app
  5. Protect transformer from overloading by configure the load limit.

whatsapp

Need Quick Assistance? Chat with us on WhatsApp.

Chat Now

Description

Application:

  1. Automatic Meter Reading (AMR) Application
  2. Residential Application
  3. Pay As You Go (PAYG) Application.
  4. GPRS Based Solution.
  5. Fit for dual source applications

Benefits:

  1. Customer can access their consumption through Mobile App
  2. Charges based on actual usage, eliminating estimation
  3. Record energy of two sources (Mains/DG)
  4. End consumer can recharge their meter through mobile app
  5. Protect transformer from overloading by configure the load limit.
