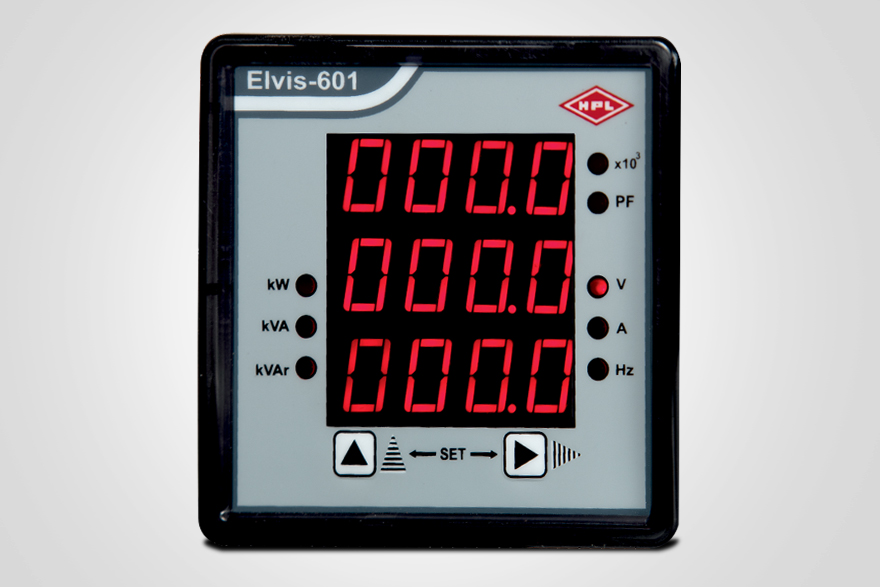

Elvis Series Panel Meter

Features:

  •  Accuracy maintained throughout the range
  • Three phase 3 Line LED display
  • LED indication for Voltage, Current, PF, Frequency & Power
  • PT programming range- 110 to 999KV/110 to 500V
  • CT programming range – 1 to 9999A/1 to 5A
  • Direct measurement upto 650V without external PT
  • Diagnostic feature to check connection & phase sequence on display
  • In case of over voltage >650V or Over current >7.5A meter display will show HIGH Alert
  • Push button based site programmable CT/PT ratio
  • Field selectable network (star & delta) option

pdf

icon-2
icon-1

Applications:
  • Electrical Panels - Industrial LT Panels
  • Generation, Transmission and Distribution Panels
  • Genset Panels, Motor Control Centres, Distribution Control and Relay Panels.
  • Uninterrupted Power Supplies
  • Test Benches and Laboratory Equipment
Advantages:
  • Scroll Lock & Auto Scroll facility
  • CT & PT on site programmable
  • Quick and Easy installation
  • High Visibility & Bright Display
  • Cost Effective
  • compact designs, making them ideal for tight panel spaces
