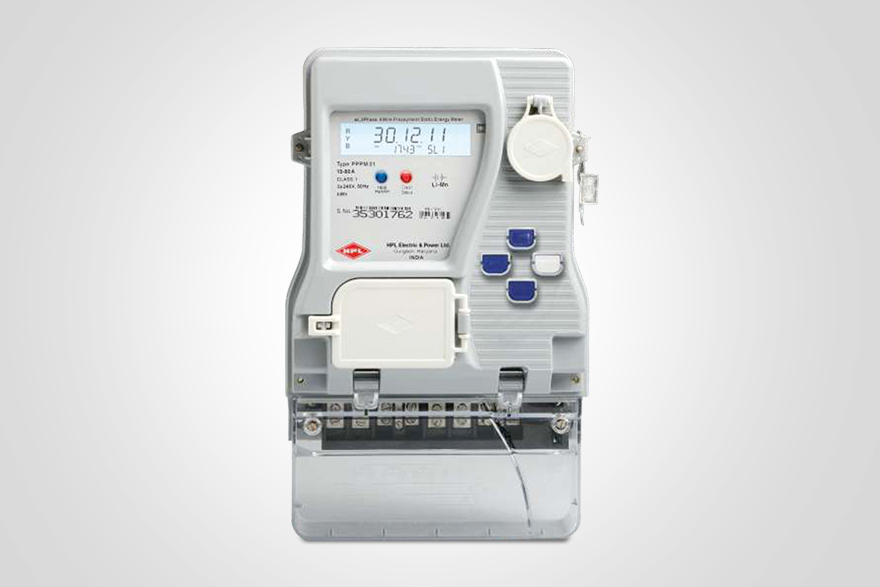

Keypad Based Prepaid Energy Meter

Application:

  1. Residential and Commercial Prepayment
  2. Pay As You Go (PAYG) Mode.
  3. Fit for Single source as well as dual source applications.
  4. Building Management System (BMS) Applications.

Benefits:

  1. Reduced financial losses
  2. No need to stand in queue
  3. No Bill disputes
  4. Tamper & Fraud detection
  5. Money and time based Load Connection and disconnection
  6. Record energy of two sources (Mains/DG)
  7. Protect transformer from overloading by configure the load limit.

Features

  • Rating available: Single Phase Two Wire 10-60A & Three Phase Four Wire 10-60A.
  • Confirms to the requirement of IS:15884.
  • Meter has BIS marking as per IS:15884
  • Load will be disconnected in case the credit limit becomes Zero or the current / Load exceeds the defined load limit.
    – Two latch relays are provided in single phase meter for reconnection/ disconnection of load.
    – Three latch relays are provided in three phase meter for reconnection/ disconnection of load.
  • User friendly key pad and display.
  • Buzzer to give alarm in case of low credit / overload.
  • Bi-coloured LED for low credit warning.
  • Data download through Optical Port/Hard Wired Port for.
    A. Tamper events B. Load survey data C. Billing Data D. Prepaid Related Data
  • Communication RS 232 & RS 485.
