Fusegear

Fusegear

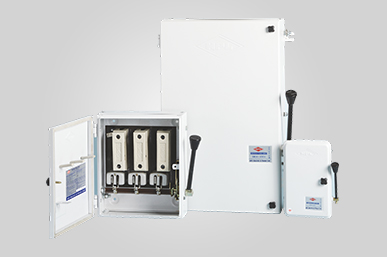

  • Ebrit A3 View Detail Switch Fuse Unit
      • Range 16A, 32A, & 63A SPN 240Vac.
      • 16A, 32A SPN 240Vac and 32A & 63A DP 415Vac.
      • 32A, 63A, 100A, 200A & 320A TPN 415Vac.
      • Conforming to IS 13947 part 3/93.

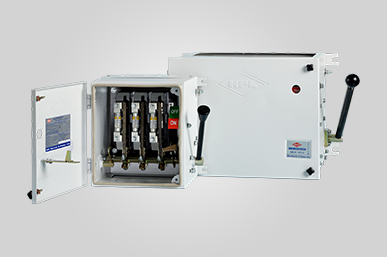

  • Ebrit A3 View Detail Fuse Switch Unit
      • Range 63A-500A TPN 415Vac.
      • Conforming to IS 13947 part 3/93.
      • Surface mounting switch units for industrial & commercial applications where heavy on load switching duties are required.
      • Ideally suited for domestic applications for repeated switching operations.

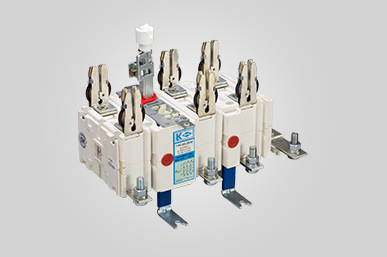

  • Ebrit A3 View Detail LK - HPL Switch Disconnector Fuse
      • Range : 32A to 800A, TP, TPN & 4 Pole, 415V, 50Hz
      • Confirms to latest IS 13947-3 / IEC 947-3
      • Tested at CPRI, Bhopal for AC-23A duty
      • Multiple Roller Contact Mechanism for long life and better performance
  • Ebrit A3 View Detail Kitkat
      • Resistance to heat
      • Fine finish
      • Durability

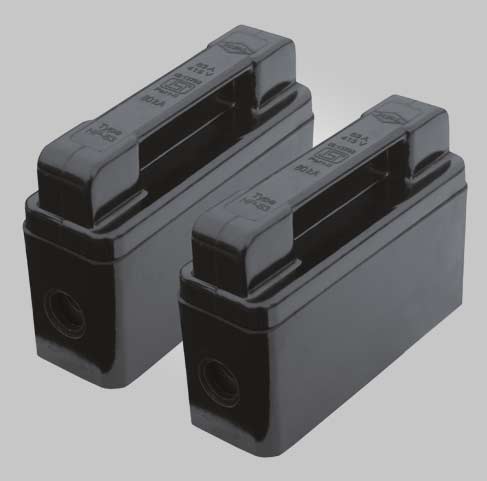

  • Ebrit A3 View Detail HRC Fuse Base & Holder
      • Range (DIN type - Fuse Link & Base ) : 2 Amps to 630 Amps
      • Range (BS Type Fuse Holder) : 20A to 125A
      • Breaking capacity>80kA at 415V, AC, 50 Hz
      • Front & Busbar Connection options for fuse Holders (of BS type).
  • Ebrit A3 View Detail HRC Fuse link
        • Range (DIN type - Fuse Link & Base ) : 2 Amps to 630 Amps



        • Range (BS Type Fuse Holder) : 20A to 125A



        • Breaking capacity>80kA at 415V, AC, 50 Hz



        • Front & Busbar Connection options for fuse Holders (of BS type).
