Changeover Switch

Switchgear

Changeover Switch

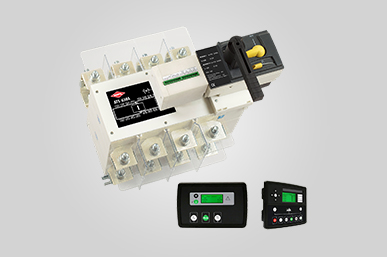

  • Ebrit A3 View Detail AV ATS
      • Range 40A-630A in 4P version with 3 frame sizes
      • AC 23A application duty
      • Trip Safety as standard feature.
      • AC 23A application duty

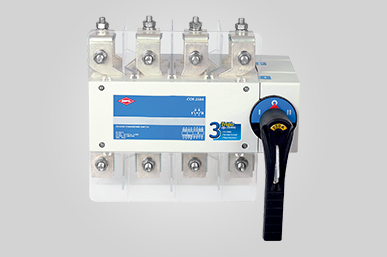

  • Ebrit A3 View Detail Onload Changeover Switch
      • Range 63- 3150A in 6 frame sizes Conforming to IS 13947 part 3/93.
      • Available in 3P & 4P versions.
      • 4P with 100% Neutral.
      • Arc Chute plates to quench arc within the switch and also enhance contact life.

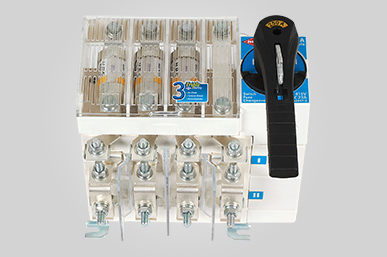

  • Ebrit A3 View Detail Switch Fuse Changeover
      • Range 125- 630A 4P with 100% Neutral Conforming to IS 13947 part 3/93.
      • Arc Chute plates to quench arc within the switch and also enhance contact life.
      • Compact body of fiber glass, reinforced polyester resin.
      • Increased thermal withstand capacity of switch body.

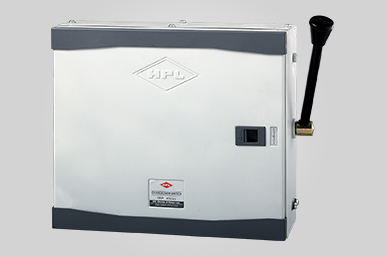

  • Ebrit A3 View Detail Double Break Changeover Switch with side handle
      • Range 32A - 63A 2P 240Vac for On Load switching.
      • For On Load three phase source changing over Range 32A, 63A & 100A 4P 415Vac.
      • Off Load Changeover operations Range 200A - 2000A 4P 415 Vac.
      • Conforming to IS 13947 part 3/93.

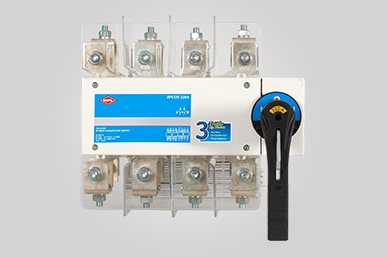

  • Ebrit A3 View Detail By Pass Switch
      • Range 125- 1600A 4P with 100% Neutral Conforming to IS 13947 part 3/93.
      • Arc Chute plates to quench arc within the switch and also enhance contact life.
      • Compact body of fiber glass, reinforced polyester resin.
      • Increased thermal withstand capacity of switch body.

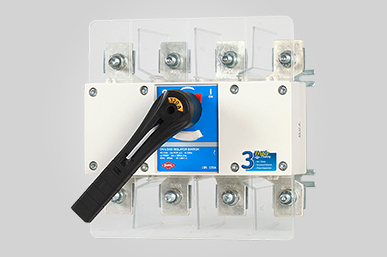

  • Ebrit A3 View Detail Load Break Switch
      • Range 63- 3150A 4P with 100% Neutral Conforming to IS 13947 part 3/93.
      • Arc Chute plates to quench arc within the switch and also enhance contact life.
      • Compact body of fiber glass, reinforced polyester resin.
      • Increased thermal withstand capacity of switch body.
