Support Modules


Support Modules

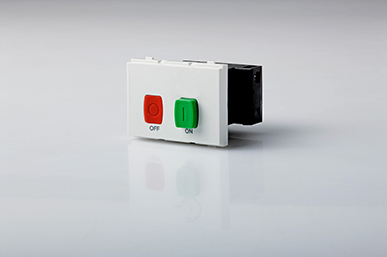

  • Ebrit A3View DetailMotor Starter
      • Rated current 20A-25A.
      • UV stabilized.
      • Voltage (V) Wide Working Voltage Band 150 V - 270 V, 50 Hz AC.
      • Wattage (W) 400, 600, 1000.
      • Material used Polycarbonate-FR.

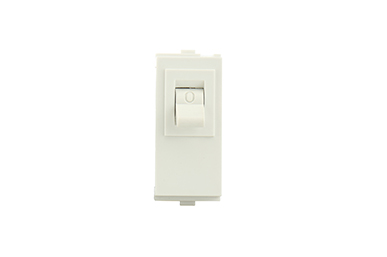

  • Ebrit A3View DetailSP MCB 20A/25A
      • Standard Rated Current(In) 20A/25A.
      • Tripping Characteristics "C" Curve.
      • Rated short-circuiting capacity(Icn) 3000A(3kA).
      • Rated Voltage(Ue) 240V AC.
      • Rated Frequency (f) 50Hz.
      • Wattage Loss As per IS/IEC standards.
      • Material used Polycarbonate-FR.

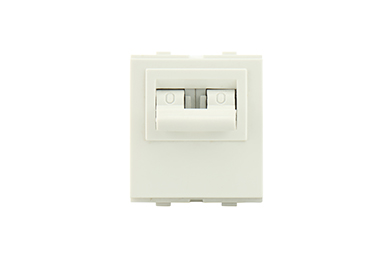

  • Ebrit A3View DetailDP MCB 20A
      • Standard Rated Current(In) 20A/25A.
      • Tripping Characteristics "C" Curve.
      • Rated short-circuiting capacity(Icn) 3000A(3kA).
      • Rated Voltage(Ue) 240V AC.
      • Rated Frequency (f) 50Hz.
      • Wattage Loss As per IS/IEC standards.
      • Material used Polycarbonate-FR.
